HIOKI LR8102

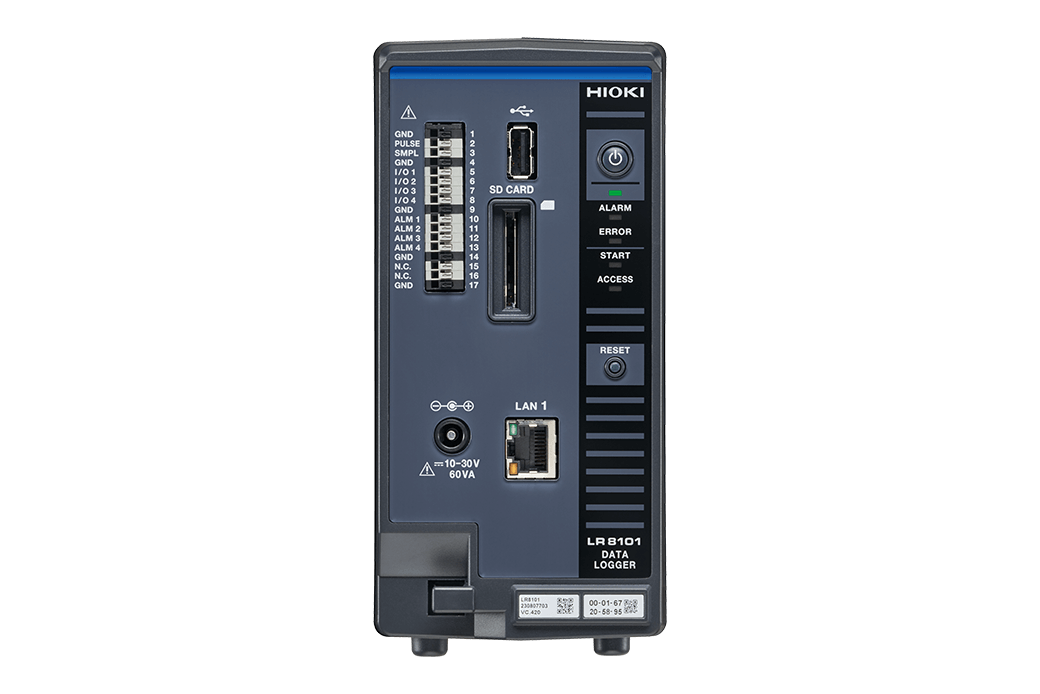

HIOKI data loggers, LR8101 and LR8102, provide solutions that turn measurement system challenges into advantages. Batteries used in electric vehicles are becoming increasingly high-voltage. To safely measure battery cell voltages and temperatures during charge/discharge testing of high-voltage battery packs, the terminal-to-ground voltage and module-to-module voltage of the instrument are critical. LR8101 and LR8102 ensure safety in high-voltage systems, support a large number of measurement channels, and link data with host systems. The LR8101 and LR8102 cannot be used alone. They must be combined with one or more measurement modules (sold separately). This product does not include an AC adapter. Either the AC Adapter Z1016, Power Cable L1012, or the AC Power Module M1100 must be purchased separately. In case of combining with the M7103, the AC Power Module M1100 is required. For data storage, choose either the Hioki SD Memory Card Z4001 (2 GB), SD Memory Card Z4003 (8 GB), or the USB Drive Z4006 (16 GB).

Key Features

• Add measurement modules as needed to create the measurement system you need
• [LR8102] Add channels by synchronizing sampling across multiple loggers
• [LR8102] Transfer high-speed data in real time
