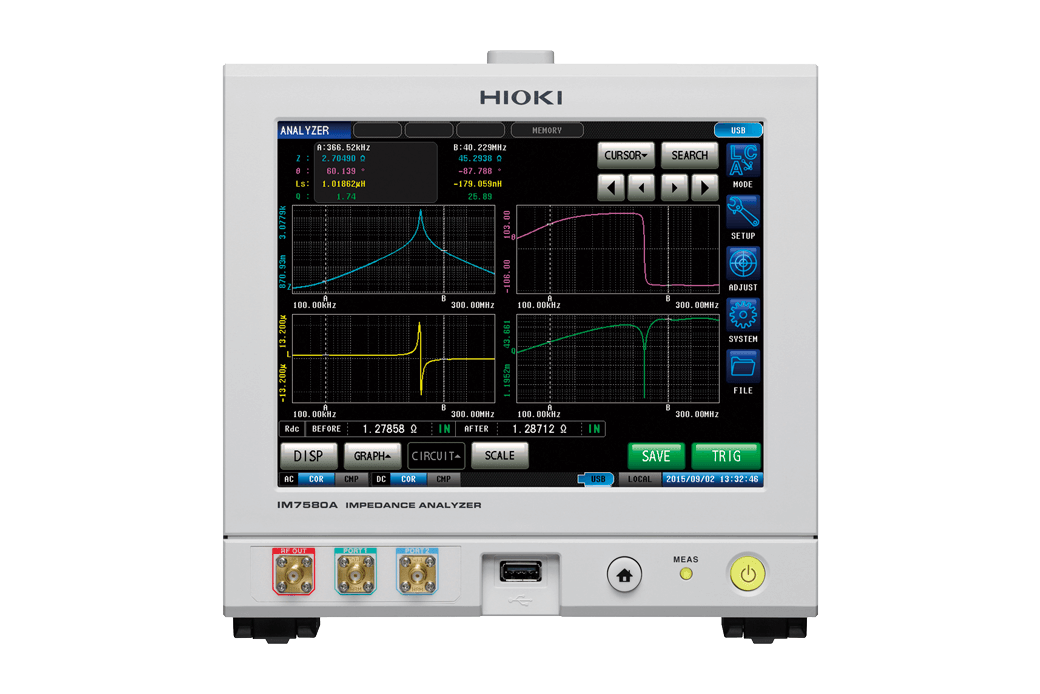

HIOKI Impedance Analyzer range from up to 3 GHz devices to suit a wide range of applications in the testing of electronic components. The IM7580A impedance analyzer offers a top measurement time of 0.5 ms over a 1 MHz to 300 MHz frequency, and both LCR and Analyzer Modes to meet applications for both high volume production inspections and research and development. The IM7580 series encompasses five models covering measurement frequencies of 1 MHz to 3 GHz.
Key Features
- 1 MHz to 300 MHz testing source frequency
- Fastest test speed of 0.5 msec
- ±0.72% rdg. basic accuracy
- RF I-V method
- Half-rack size body and palm-sized test head
- Comprehensive contact check (via DCR testing, Hi-Z reject or waveform judgment)
- Make frequency sweeps, level sweeps and time interval measurements in Analyzer Mode
