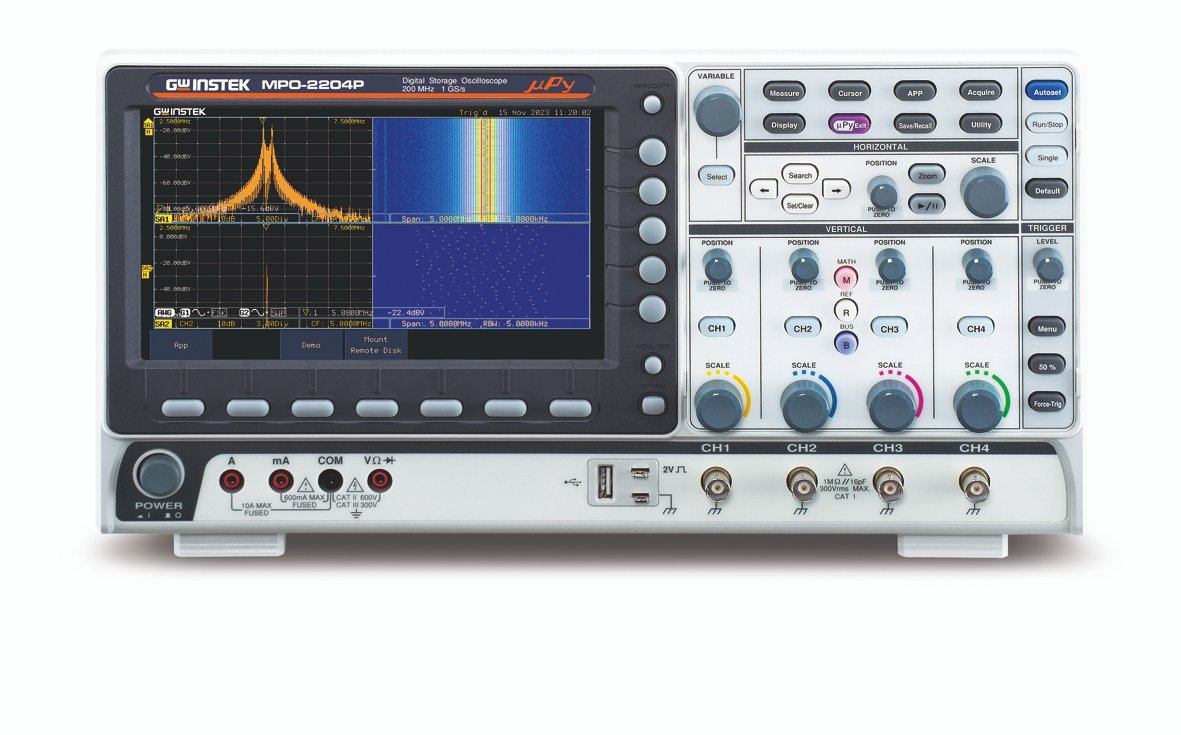

GW INSTEK MPO-2000B/P (Programmable)

GW INSTEK launches the MPO-2000 series, which is named after the abbreviation of Multi-function Programmable Oscilloscope. In addition to the five-in-one multi-functional architecture, we innovatively introduced the Python script function into the MPO-2000, so that users can conduct program control of a small automated test system by setting up a single unit test or multi-unit test without a PC, hence, the name MPO. The series provides USB CDC device control to meet the needs of multi-unit collaborative tests, and a Python GUI library is provided to allow users to modify the original built-in Python APP or write their own programs.

Key features

• MPO-2000P (Professional version): 200MHz; 4CH/2CH
• MPO-2000B (Basic version): 100MHz; 4CH/2CH
• I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
• MPO-2000P: CAN FD, USB 2.0(full speed), FlexRay, USB PD, I2S digital decoding
• MPO-2000B: CAN FD, USB 2.0 (full speed) digital decoding
• Data log function is able to track signal changes up to 1000 hours
• Network storage function
• Equips with a dual channel spectrum analyzer, a dual channel 25MHz AWG, DMM and power supply (Dual channel output, 1V to 20V continuously adjustable 0.1V step)
