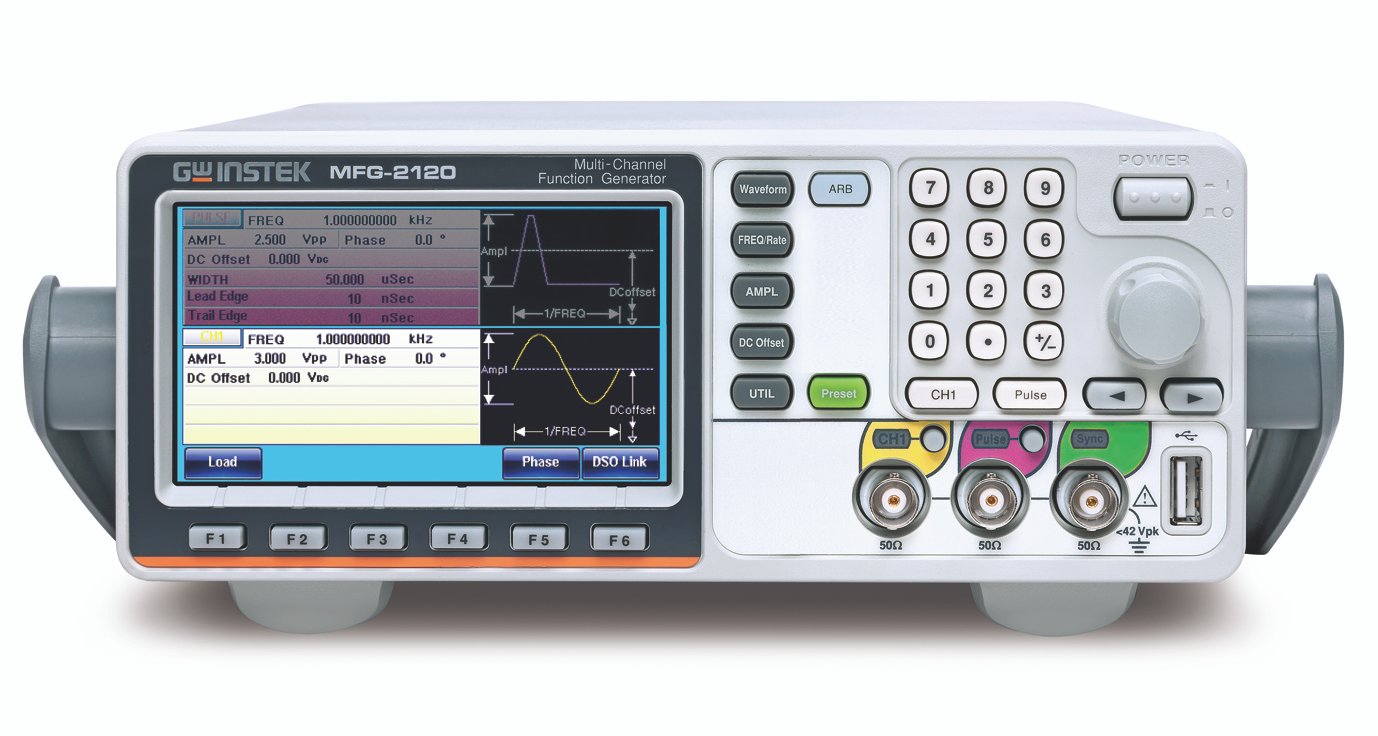

GW INSTEK MFG-2000 series is multi-channel function generator, which has up to 5 simultaneous output channels including CH1-CH2 as equivalent performance dual channel arbitrary function generator with the maximum 60MHz for both channels, a RF signal generator channel, a standard AFG channel which produces the maximum 320MHz sine wave and various modulation RF signals, a pulse generator channel, whose frequency reaches 25MHz and a power amplifier which is ideal for audio range. The above-mentioned five different functionality channels are separately or totally allocated on 10 models, which extend from the basic single-channel AFG with pulse generator models to five-channel models so as to satisfy various educational and industrial applications.
Key features
- Max. Sample Rate of 250MSa/s
- Repetition Rate: 125MHz
- 14-bit Resolution
- 16k Points Memory Depth
- Frequency Counter: 150MHz, 8 bits Frequency Resolution
- AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation
- Built-in Medical and Automotive Electronic Waveforms
- Interface: USB Host/USB Device/LAN
