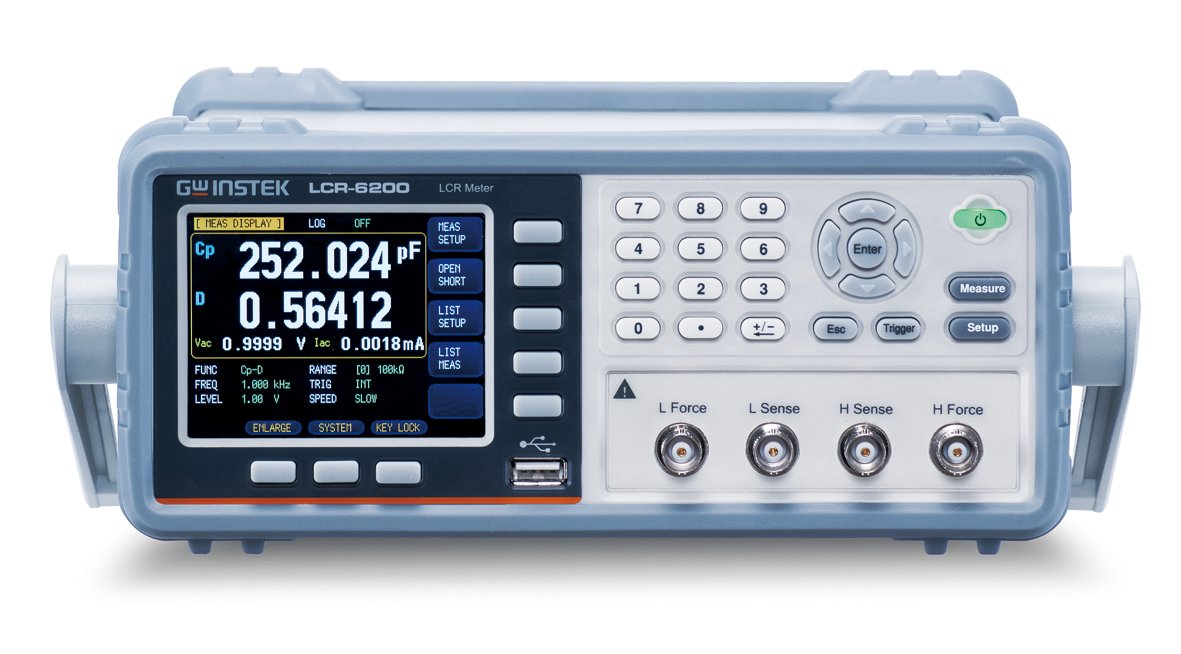

GW INSTEK LCR-6000 series, a compact LCR meter with diversified and abundant features, is an excellent tool for various application stages of passive components, including R&D, engineering testing, incoming inspection, etc., or the production and sorting of passive components. The LCR-6000 series adopts 3.5-inch color LCD and features opulent display parameters. In addition to simultaneously displaying setting criteria and measurement results, the series increases two additional monitoring parameters. In other words, there are four parameters, primary/secondary and two monitoring, simultaneously shown on the screen that tremendously enhances the measurement efficiency. The enlarge display mode not only emphasizes the measurement results, but also provides PASS/FAIL judgment to facilitate a rapid and convenient test result.
Key features
- 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)
- Basic accuracy: 0.05%
- Measuring speed up to 25ms (max.)
- 16 major/secondary parameter measurement combinations
- DCR measurement and internal D.C. bias voltage (±2.5V)
- PASS/FAIL judgment
- Interface: RS-232C, Handler and USB Host / Device
