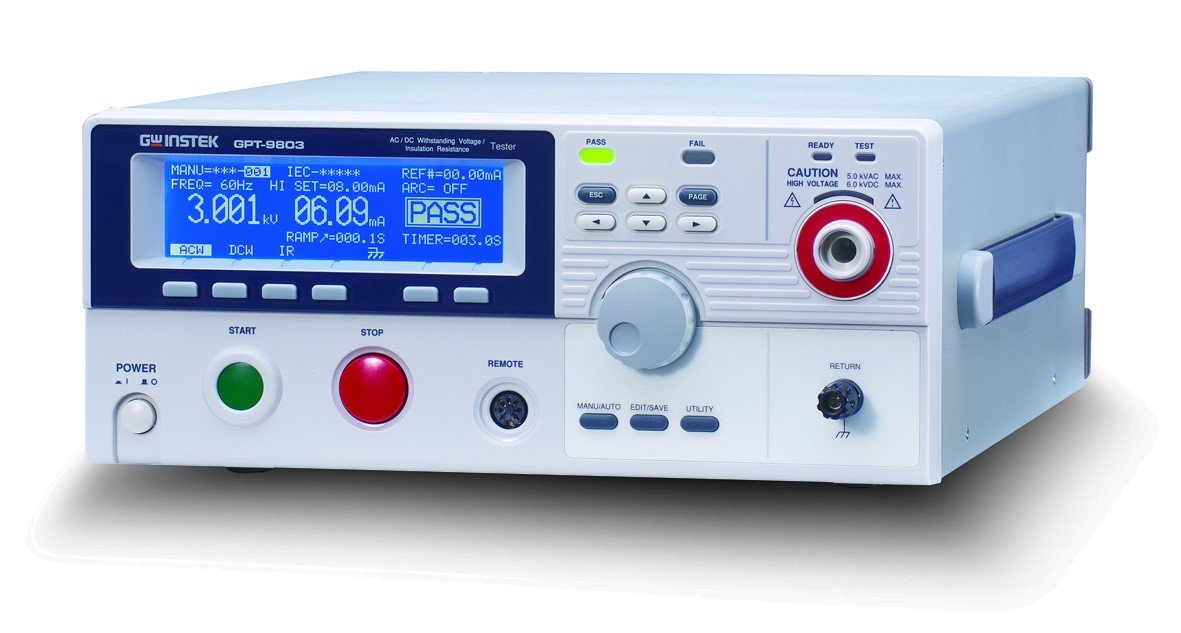

GW INSTEK GPT-9800 (200VA)

GW INSTEK is launching to the market a series of safety tester with high durability and multiple user-protection design. The GPT-9800 supports the major test items among all the needed for the compliance of the safety standards such as IEC, EN, UL, CSA, GB, JIS and other safety regulations.

A total of 4 safety tester models in the GPT-9800 Series

•  GPT-9804: AC withstanding, DC withstanding, Insulation Resistance and Ground Bond
•  GPT-9803: AC withstanding, DC withstanding and Insulation Resistance
•  GPT-9802: AC and DC withstanding tests
•  GPT-9801: AC withstanding test

Key features

• 200VA AC Test Capacity
• Manual/Auto Mode
• Safety INTERLOCK function
• Controllable Ramp-up Time
• RMS Current Measurement
• High resolution: 1uA for measuring current, 2V for setting voltage
• PWM amplifier to enhance the power efficiency and reliable testing
• Max. 100 memory block for test condition (step) setting. And each step can be named individually.
• Interface: RS-232C, USB device, Signal I/O and GPIB (optional)
